Rhopoint Appearance Elements Help Help

Batching and statistical analysis

Batch results together

Batched results are combined with the same batch name and statistically analyzed with Max, Min, Mean values.

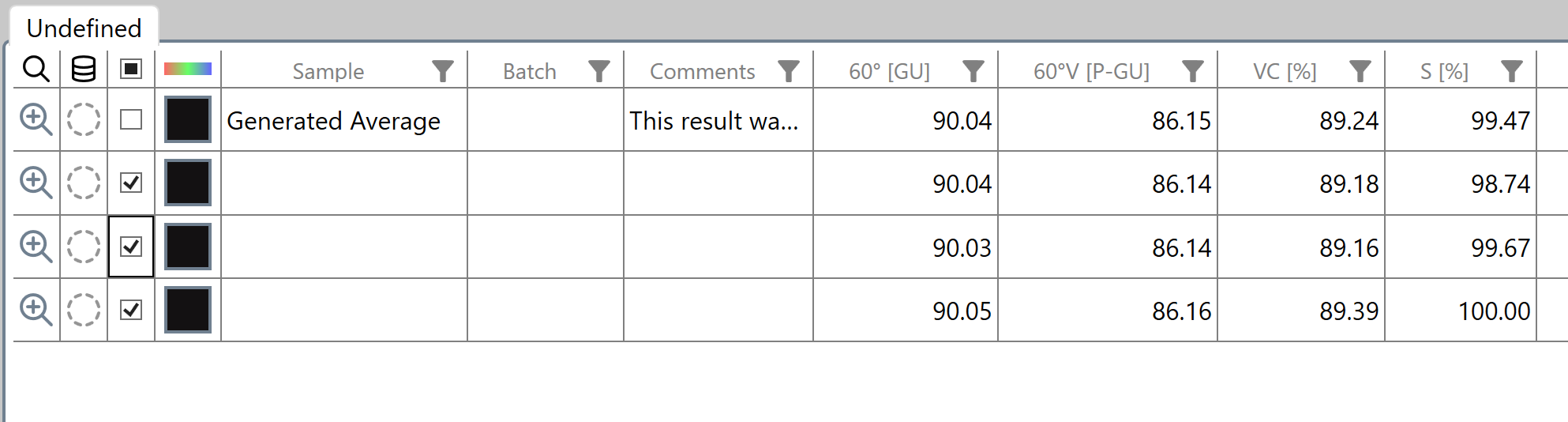

Measurements of the same part can be batched together for statistical analysis
Measurements of the same part can be batched together for statistical analysis

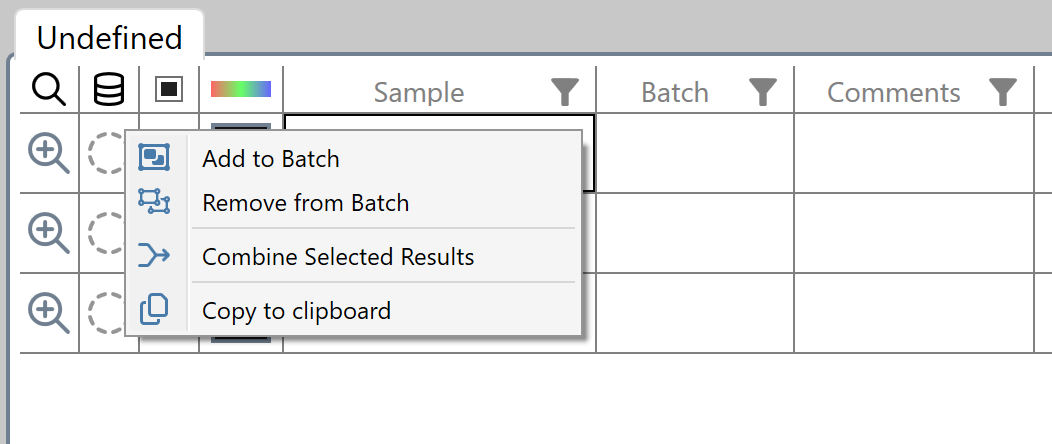

To combine measurements into a batch

  • Type the same identifying name in the batch column for each measurement.

  • Select results to be batched in the selection column

    • Right click on the table

    • Select “Combine Selected Results”

Remove results from batch

To remove results from a batch

  • Type a new batch name in the batch column of a single results

  • Left click a single result and drag it to a new batch in the batch view

  • Select single or multiple results and right click

    • Click remove from batch

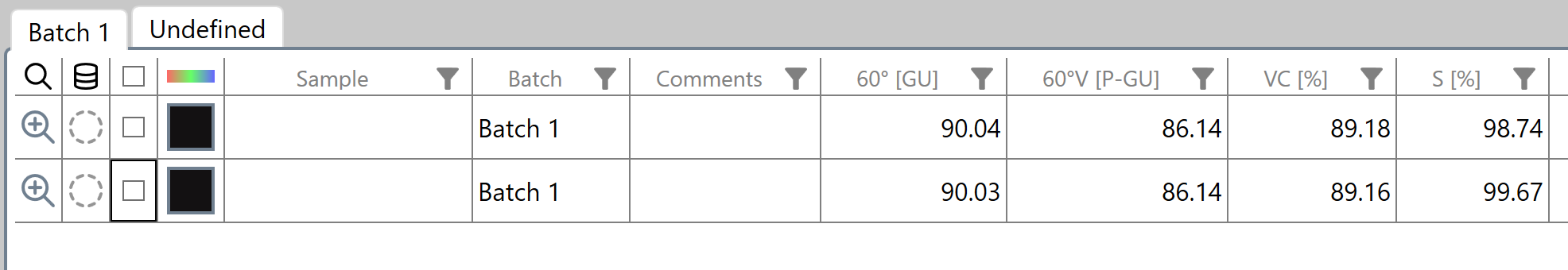

Batch View with statistical analysis
Batch View with statistical analysis

  • If one or more results are selected the software will prompt “Do you want to delete the selected rows”

  • Drag and drop single or selected results onto the Delete Results icon.

Table context menu
Last modified: 26 July 2024
